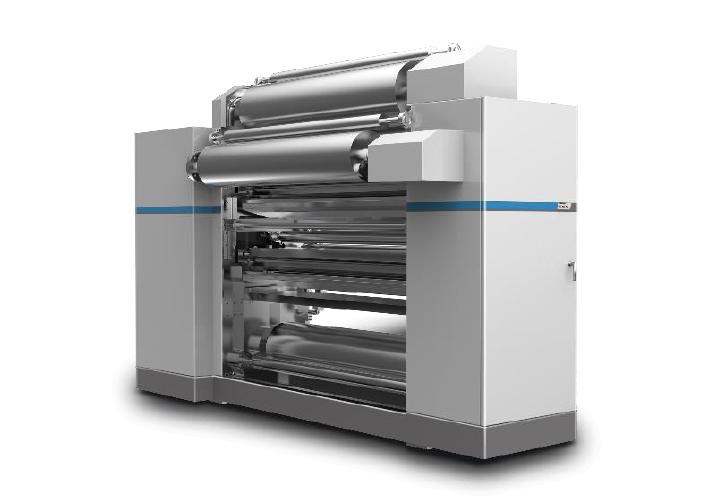

DOUBLE GLUE MACHINE - GU-D4A l07-01

Glue roll: 2 pcs. The steel product with 260 mm diameter. Besides, the surface is well treated by special netting dents, engraving, and chrome-plating.
Ductor roll: 2 pcs. The steel product with 140 mm diameter. Besides, the surface is well treated by grind and chrome-plating.
Preheating roll: 3 pcs. The steel tube product with 460 mm diameter.
Glue roll with automatic idling device to prevent the condensation of starch on the surface of glue roll from operation interruption. (With 5HP motor + inverter + reduction gear motor --- 1 pc.)
Lifting and lowering of pressure roll controlled by air cylinder. (With Dia. 63 x 120 mm ST air cylinder --- 4 pcs.)
Gap between glue roll and ductor roll, glue roll and pressure roll, is controlled by micro adjustment device with digital read out.
DRIVEN ROLL - 2SET
