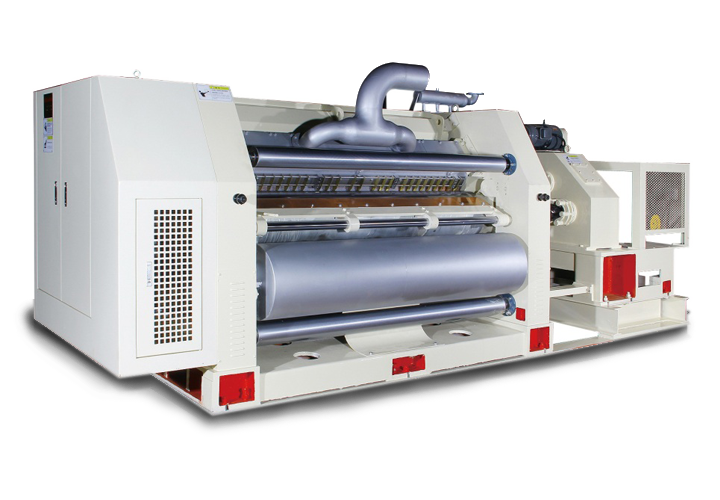

FINGERLESS SINGLE FACER - SF-20N l03-02

Features

Heating type: by steam.
Vacuum type.
Machine design speed: 200 m/min.
Types of flute profile: A, B, C, E or F Flute (one flute profile can be selected for each set of single facer.)
        "A-Flute": 35 flutes / 300 mm; height of flute: 4.6 mm.
        "B-Flute": 48 flutes / 300 mm; height of flute: 2.8 mm.
        "C-Flute": 40 flutes / 300 mm; height of flute: 3.6 mm.
        "E-Flute": 88 flutes / 300 mm; height of flute: 1.45 mm.
        "F-Flute": 127 flutes / 300 mm; height of flute: 0.76 mm.
Upper/Lower corrugating rolls: Diameter 320 mm, made of Ni-Cr-Mo alloy steel(SNCM-8) with heat treatment and hardness over SHORE 75 degree; the surfaces with precision turn ground polish and tungsten carbide.
Pressure roll: Diameter: 324 mm, made of (S45C); the surface with special heat treatment and turn ground polish.
Glue roll: Diameter 254 mm, with steel product; the surface is well treated by sand-blasted or engraved and chrome-plated.
Doctor roll: Diameter: 140 mm, with steel product; the surfaces
with precision turn ground polish and chrome treatment.
Preheating roll for liner: Diameter 400mm, made of alloy steel tube.
Preheating for medium: with a air spray nozzle at each interval 60 mm.
With glue roll automatic idler device to prevent condensation of starch on the surface of glue roll while temporarily stopped work.
(with 1HP x 1/30 reduction gear motor --- 1 pc.)
Corrugating rolls and pressure roll's bearing is lubricated by high temperature grease.
Upper corrugating roll, pressure roll, and glue roll by pneumatic control.
Gap between glue/doctor rolls, glue/lower corrugating rolls;
lower corrugating/pressure roll are controlled by motorized adjusting device and indicated with digital read out.
While producing if the medium paper got broken suddenly, the machine will stop gluing and running automatically.
Motorized glue dividing device.
(with 1/10HP x 1/20 reduction gear motor --- 2 pcs.)
With steam rotary joint and flexible steam pipe.
With 15HP blower fan --- 1 set.
With operation panel and control cabinet.
