N.C. HELICAL CUT-OFF - NC-C77H

Product Name : N.C. HELICAL CUT-OFF - NC-C77H
Inquiry

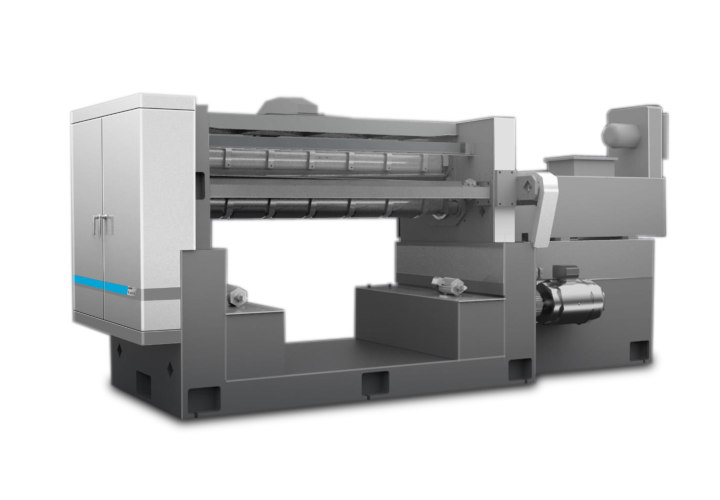

N.C. HELICAL CUT-OFF - NC-C77H
    Units:
  • Cutting machine helical type --- 1 set.
  • N.C. control panel with control system --- 1 set.
  • Asynchronous servo motor 77KW --- 1 piece.
  • Driver -- 1 piece. Specification:
  • Mechanical Continuous max. speed: 230 m/min.
  • Suit for change order speed: 120 m/min (cutting length over 850mm), should with order auto changing function.
  • Suitable temperature: 0℃ to 45℃.
  • Accuracy: ±1.0 mm.
  • Cutting length: from 500 mm to 9999 mm.
  • Memory bank for 99 orders with digital read out.
  • Using asynchronous servo motor and driver, that save power (over 30%) and has excellent performance.
  • All software control not using PC board; the cost for maintenance is cheaper.
  • Blade shaft using hollow steel pipe (the old type is solid roller), that the weight is 1/3 lighter than old type and when transmission is more efficient. Cooperate with helical type blade design that when cut paper board can save time and power, and lifetime longer. (FIG.2)
  • Using teeth type blade design when cutting paper board won't hurt hand.
  • Paper feed in and paper out delivery table using without belt design that won't damage surface of sheet.
  • When changing blade can quickly remove upper and lower blade from adjust upper blade shaft.
  • Using two brushless wheels structure in paper feed out plate and with pneumatic control constantly device.(FIG.4)
  • Paper feed in/out using independently 15HP A.C. motor + inverter control.
  • Cutting length (mm) -- machine speed (m/min) reference data as follows:
  • 500 mm -- 90 m/min.
  • 550 mm -- 115 m/min.
  • 600 mm -- 134 m/min.
  • 650 mm -- 155 m/min.
  • 700 mm -- 175 m/min.
  • 750 mm -- 192 m/min.
  • 800 mm -- 212 m/min.
  • 850 mm -- 230 m/min.
  • 900 mm ~ 3000 mm -- 230 m/min.

FIG.1

FIG.2

FIG.3

FIG.4
