N.C. SINGLE BLADE SLITTER SCORER

Slitting capacity: 4 OUT (slitting tool: 5 sets, and scoring tool: 2 sets and total is 8 scorings)
Structure is double scoring devices and adds one slitting system.
Slitting and scoring use precise linear bearing. (traditional using ball screw)
Slitting and Scoring Accuracy: ±1.0 mm.
Top single blade diameter 270 mm. (Tungsten carbide blade)
Minimum slitting size: 135 mm.
Slitting type using top slitting design. Each blade has independent grinding and oil fill system, which can set up blade grinding of production meter according to paper material.
Diameter of upper scoring tool: 224 mm.
Lower scoring tools can furnish four types scoring device, with male to male, 2 male to female, and male to flat.
Minimum scoring size: one set scoring tool: 135 mm, two set scoring tool coordination: 0 mm. With scoring depth control system.
Slitting and Scoring base movement control by independent motor that could finish size adjustment within 10 seconds.
With automatic paper pressing and avoid paper bending device in the middle of scoring and slitting tool.
Up to 999 order changes can be stored into memory.
Can output any order according to actual demand.
Machine can left to right movement 75 mm that adjust by motorized motor.
With motorized web suction equipment.
7 -1/2 HP A.C motor + inverter for scoring tool, 10HP A.C. motor + inverter for slitting tool.
Synchronization with Double Backer. Using two units ally with operation to order change without cut off corrugated board or stop machine.

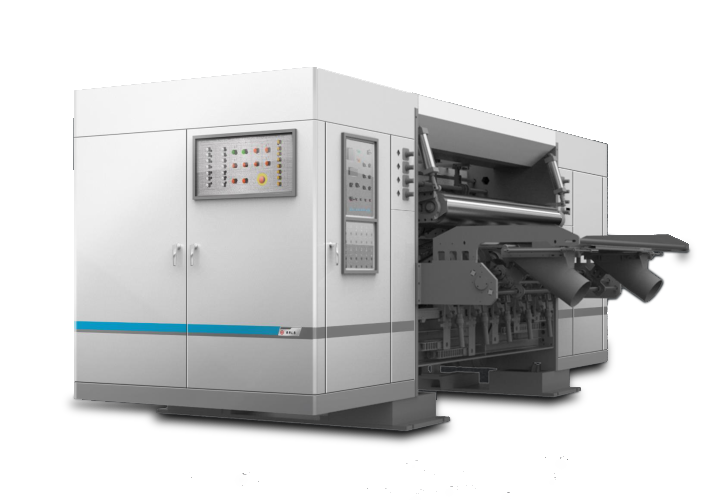

N.C. SINGLE BLADE SLITTER SCORER - RRLT-4SB
