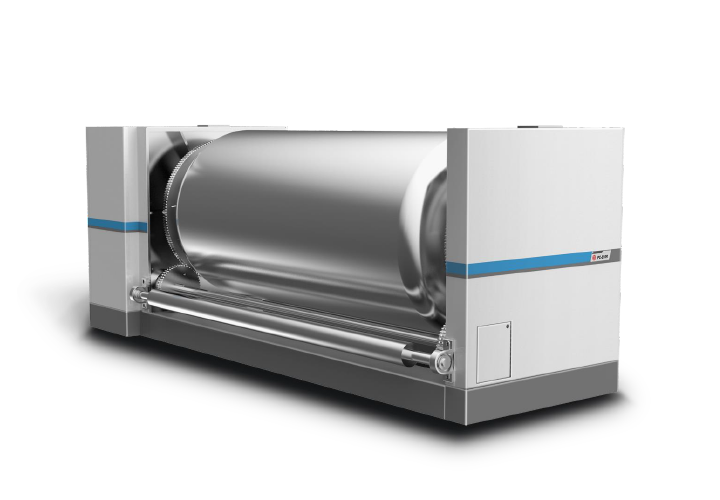

PRE-CONDITION FOR MEDIUM - PC-E10R
- Preheating drum diameter: 1000mm.
- Diameter of guide roll of paper: 110 mm --- 2 pcs, one is fixed the other can travel upon outside of the preheating drum.
- Position of paper guide roll: motor-driven.
- With electric box --- 1 pc.(FIG.1)
- With 1/2HP x 1/300 reduction motor --- 2 pcs.(FIG.2)
- A.C. motor with reduction gear and one way bearing when low speed heating drum keep low speed idle rolling, if change to high speed preheating drum synchronize rotary turn with mill roll.
FIG.1
FIG.2
