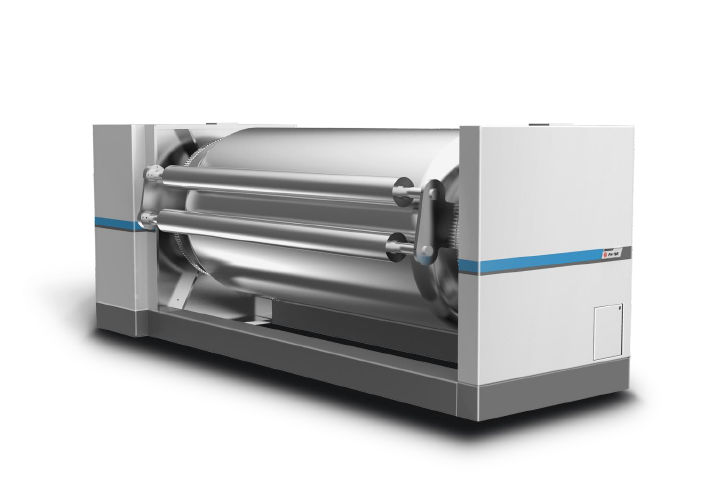

Product Name : PRE-HEATER FOR LINER - PH-10R
  • Preheating drum diameter: 1000 mm, steel product.
  • Diameter of guide roll of paper: 110 mm --- 2 pcs, one is fixed the other can travel upon outside of the preheating drum. (FIG.1)
  • With 1/2HP x 1/300 reduction gear motor --- 2 pcs.(FIG.2)
  • With electric control panel --- 1 pc.(FIG.3)
  • Frame: cast iron.
  • With reduction motor and one way bearing to be driven at idle speed, the preheating drum will be driven by mill roll at high speed.
