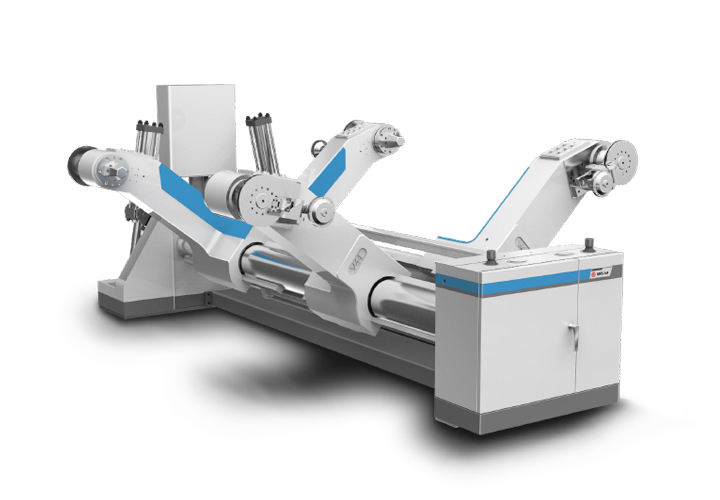

SHAFTLESS MILL ROLL STAND - MRS-V4

Product Name : SHAFTLESS MILL ROLL STAND - MRS-V4
Inquiry
SHAFTLESS MILL ROLL STAND - MRS-V4
  • Max. paper diameter: 1500 mm.
  • Each stand has two pairs of arms for two mill rolls.
  • Lifting and lowering adjustment of arms is operated by hydraulic system.
  • With 7-1/2HP hydraulic power unit --- 1 set. (FIG.1)
  • Open-close and right-left adjustment of arms is operated by hydraulic system.
  • Oil cylinder: Dia. 100 x 450 + I mm ST. --- 2 pcs.
  • Oil cylinder: Dia.  63 x 700 mm ST. --- 4 pcs.
  • Tension control: air brake system by manual adjustment.
  • Each set of mill roll stand consists of two sets of tracks and dollies.

FIG.1

FIG.2

FIG.3

FIG.4

FIG.5
