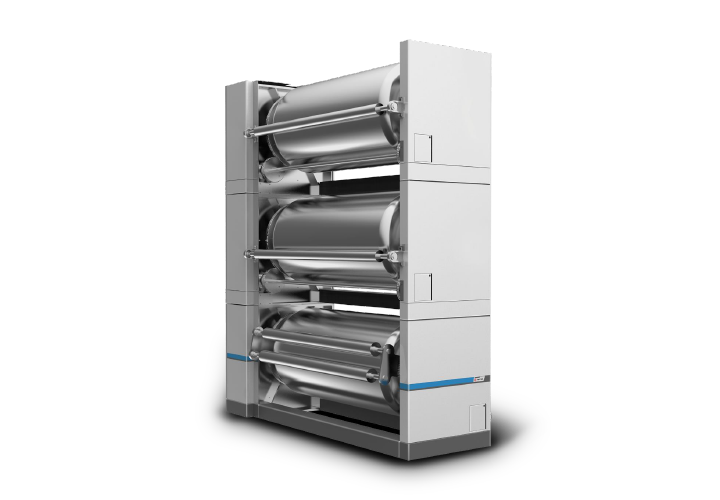

TRIPLEX PREHEATER (ROTARY TYPE) - PH-T10R
- Preheating drum diameter: 1000 mm --- 3 pcs, steel product.
- Diameter of guide roll of paper: 135 mm --- 9 pcs, 3 fixed. the other 6 traveling upon outside of preheating roll, position of paper guide roll : motorized.(FIG.2)
- With 1/2HP x 1/300 reduction gear motor --- 6 pcs.(FIG.3)
- With electric control panel --- 1 pc.(FIG.1)
- Frame: cast iron.
- With reduction motor roller to be driven at idle speed with free.
FIG.1
FIG.2
FIG.3
